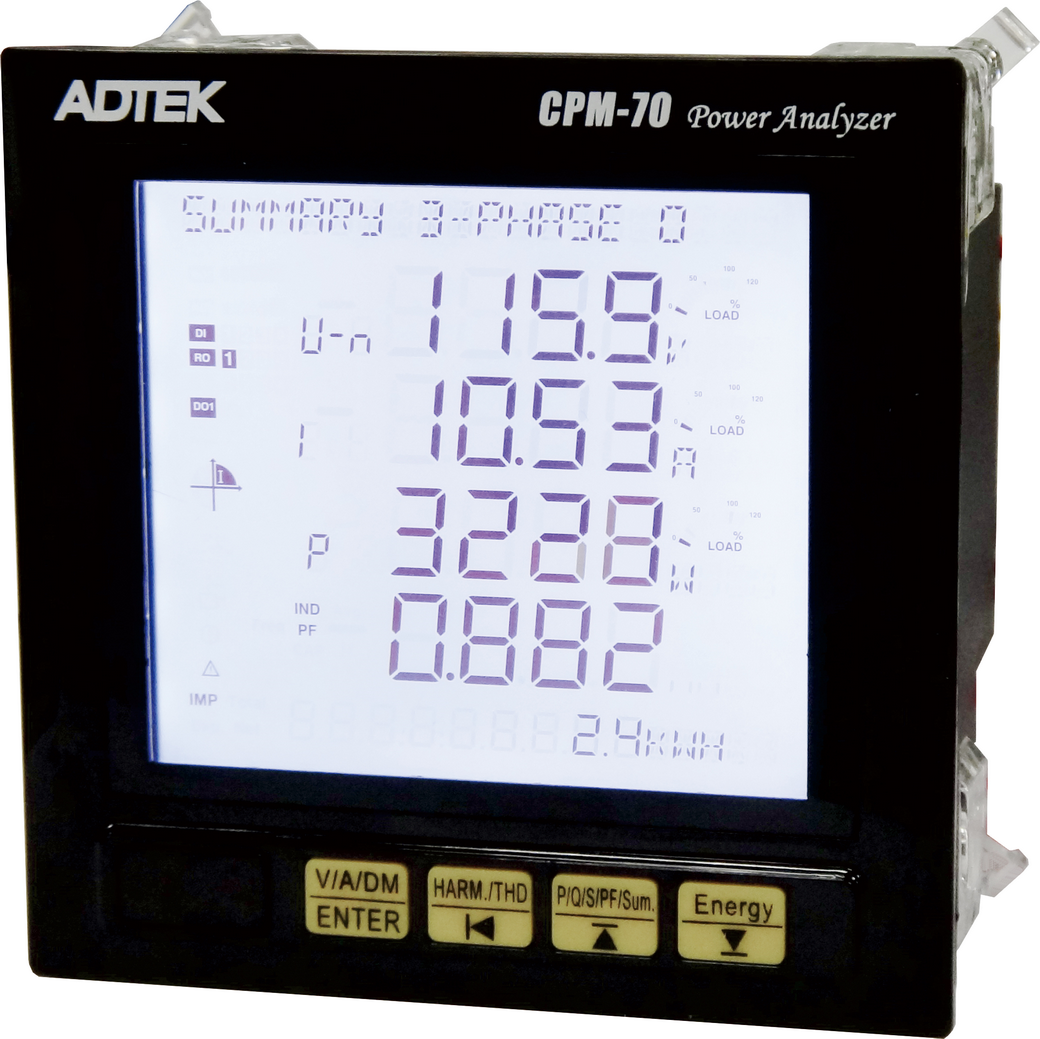

CPM-70 multifunction power analyzer provides high accuracy single phase and three-phase energy measuring and displaying, energy accumulating, power quality analysis, data logging and data communication.
CPM-70 series meters are able to measure bidirectional, four quadrants kWh and kVarh.
It provides maximum/minimum records for power usage and power demand parameters. Hardware standard built in a RS485 Modbus communication port , 4 Digital inputs, 2 Relay outputs, LCM and 2 MB flash for data-logging.
In addition , also provide TOU , voltage and current THD, harmonics up to the 51st and auto wiring change (Note) via software.
Features
■ Sampling 128 point / cycle
■ High Accuracy: 0.5S
■ Individual harmonic 2~51st
■ Demand, electricity bill, CO2 carbon emission accumulation
■ FCC, CE certified
Applications
■ Energy management system
■ Intelligent power panel
■ Community power monitoring
■ Power Grid automation
■ Industrial automation
■ Intelligent green building
